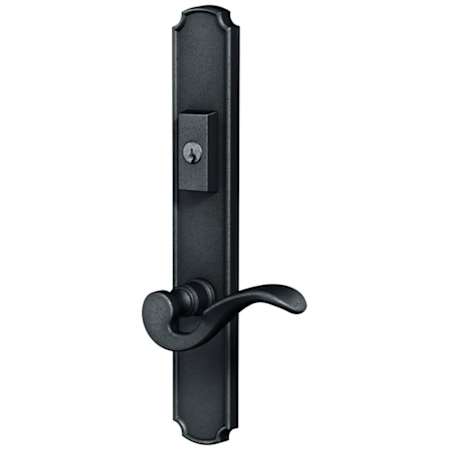

Baldwin Bismark Door Configuration 5 Passage Multi Point Trim Lever Set with American Cylinder Above or Below Handle
Model: MP002402FDP5|Item: bci2093570
from theBismark Collection
$563.20
Finish: Distressed Oil Rubbed Bronze -
Special Order
Finish: Distressed Oil Rubbed Bronze -
Special Order
Distressed Oil Rubbed Bronze
Details
This is made specifically for multipoint doors and is a Trim Only. Product includes Interior and Exterior Trim with Lever and Cylinder (if Keyed Entry Function) only.
Features:
- 5152 lever included
- Crafted from high quality forged brass for lasting durability
- Premium finishes maintain their appearance over time
- Handing is reversible for use on left or right handed doors
- Covered by the Baldwin Estate limited warranty
Specifications:
- Door Thickness: 1-3/4", 1-7/8", 2", 2-1/4", 2-1/8"
- Cylinder Hub Location: Above or Below Handle American Cylinder
- Center to Center: 3-5/8"
- Mounting Holes Center to Center: 7-9/16"
- Handle to Mount: 2-9/16"
- Manufacturer Door Configuration: 5
Manufacturer Resources
Installation GuideSell SheetSpecification SheetManufacturers Warranty InformationDimensions and Measurements
Center to Center | 3.625 in. |
Center to Center mm | 92 mm |
Door Thickness | 2-1/4", 2-1/8", 2", 1-7/8", 1-3/4" |
Handle to Mount | 2.5625 in. |
Mounting Holes Center to Center | 7.5625 in. |
Projection | 2.3 in. |
Trim Height | 11 in. |
Trim Width | 1.75 in. |
Dimensions and Measurements
Center to Center | 3.625 in. |
Center to Center mm | 92 mm |
Door Thickness | 2-1/4", 2-1/8", 2", 1-7/8", 1-3/4" |
Handle to Mount | 2.5625 in. |
Mounting Holes Center to Center | 7.5625 in. |
Projection | 2.3 in. |
Trim Height | 11 in. |
Trim Width | 1.75 in. |
Characteristics and Features
Cylinder Hub Location | Above Handle American Cylinder, Below Handle American Cylinder |
Door Manufacturer | Pella, Willmar, BiltBest, Marvin Integrity, Sierra Pacific, Superior, Eagle, G-U |
Function | Passage |
Handing | Left, Right, Reversible |
Handle Material | Metal |
Handle Orientation | Handle on Bottom, Handle on Top |
Handle Style | Lever |
Lock Style | Multi Point |
Manufacturer Door Configuration | 5 |
Material | Brass |
Mount | Full Plate |
Style | Federal |
Theme | Traditional |
Characteristics and Features
Cylinder Hub Location | Above Handle American Cylinder, Below Handle American Cylinder |
Door Manufacturer | Pella, Willmar, BiltBest, Marvin Integrity, Sierra Pacific, Superior, Eagle, G-U |
Function | Passage |
Handing | Left, Right, Reversible |
Handle Material | Metal |
Handle Orientation | Handle on Bottom, Handle on Top |
Handle Style | Lever |
Lock Style | Multi Point |
Manufacturer Door Configuration | 5 |
Material | Brass |
Mount | Full Plate |
Style | Federal |
Theme | Traditional |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Estate |
Series | Bismark |
Warranty and Product Information
Approved for Commercial Use | No |
Collection | Estate |
Series | Bismark |
