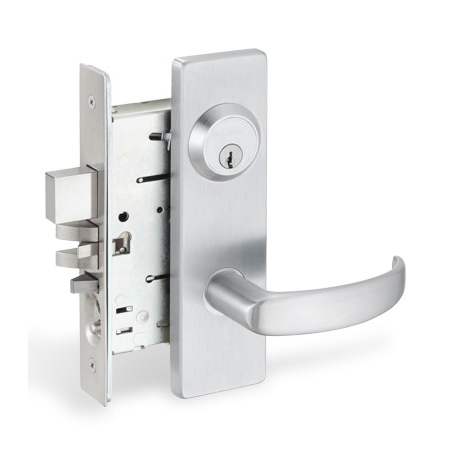

Falcon MA Series SFIC Office Keyed Entry Mortise Lock Set with Sutro Lever and Napa Rose
Model: MA521BSN625|Item: bci3833875
from theMA Series Collection
$647.43
Finish: Bright Chrome -
Special Order
Details
Image shown may differ slightly from actual product
Function:
- Entry/Office Lock with Button Lockout: Latch bolt operated by handle from either side except when outside handle is made inoperative by buttons in face. When outside knob/ lever is locked, latch bolt is retracted by key from outside or by operating inside handle. Auxiliary dead latch. Outside handle is unlocked by buttons on face. (ANSI F04)
Features:
- Constructed of high quality materials for lasting durability
- UL listed and fire rated for up to 3 hours
- Easily reversible handing for your convenience
- All necessary mounting hardware included
- Covered by Falcon's 1 year limited warranty
Specifications:
- Handle Length: 4-7/8"
- Handle Projection: 3"
- Door Thickness: 1-3/4", 1-7/8"
- Americans with Disabilities Act Compliant: No
- ANSI Certification: A156.13
- BHMA Certification: Grade 1
Manufacturer Resources
SpecificationsDimensions and Measurements
Backset | 2-3/4" |
Door Thickness | 1-7/8", 1-3/4" |
Edge Bore | 1" |
Product Weight | 4.5 lbs. |
Projection | 3 in. |
Width | 4.875 in. |
Dimensions and Measurements
Backset | 2-3/4" |
Door Thickness | 1-7/8", 1-3/4" |
Edge Bore | 1" |
Product Weight | 4.5 lbs. |
Projection | 3 in. |
Width | 4.875 in. |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | 5 Pin Schlage C |
Function | Keyed Entry, Office |
Handing | Left, Right, Reversible |
Handle Material | Metal |
Handle Style | Lever |
Keyway | C |
Material | Steel |
Mount | One Piece |
Rosette Shape | Rectangle |
Theme | Transitional |
Characteristics and Features
Concealed Screws | Yes |
Cylinder | 5 Pin Schlage C |
Function | Keyed Entry, Office |
Handing | Left, Right, Reversible |
Handle Material | Metal |
Handle Style | Lever |
Keyway | C |
Material | Steel |
Mount | One Piece |
Rosette Shape | Rectangle |
Theme | Transitional |
Manufacturer Technology
SmartKey | No |
Manufacturer Technology
SmartKey | No |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.13 |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | ANSI, UL |
Collection | MA Series |
Country Of Origin | USA |
Fire Rated | Yes |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
Warranty and Product Information
ADA | No |
ANSI Certification | A156.13 |
Approved for Commercial Use | Yes |
BHMA Certification | Grade 1 |
Certifications | ANSI, UL |
Collection | MA Series |
Country Of Origin | USA |
Fire Rated | Yes |
Made in America | Yes |
Manufacturer Warranty | 1 Year Limited |
